| VETRA offers the following PC Keyboard, Mouse & Video (KVM) Accessories to help in connecting our KVM products to keyboards, mice, video monitors, and PCs |
|
Interface
Cables provide connection
for our VIP-312, and -313 Keyboard Encoders to
the PC's keyboard port, and to a standard keyboard. Adapters connect standard 5 pin DIN (AT) connectors to 6 pin mini DIN (PS/2) connectors. Rack Mount Tray used for mounting Vetra products in a standard 19" rack. |
These cables make it easy to connect our VIP-312, and -313 Keyboard Encoders to the PC's keyboard input port, and to a standard keyboard.
 |
VIP-310-M Connects VIP-312, and -313 Encoders to PC. Six
pin female header to Encoder, male 5 pin DIN (AT) connector to
PC; 36 in (91.5 cm) long. An adapter is also provided to change
the 5 pin DIN to a 6 pin mini DIN (PS/2) connector to the PC. Shipping weight is 1 lb. $14.00 |
 |
VIP-310-F Same as above, except has female 5 pin DIN (AT)
bulkhead panel mount connector to accept keyboard and is 18 in
(45.7 cm) in length. An Adapter is also provided to change the
5 pin DIN to a 6 pin mini DIN (PS/2) connector for the keyboard. Shipping weight is 1 lb. $14.00 |
|

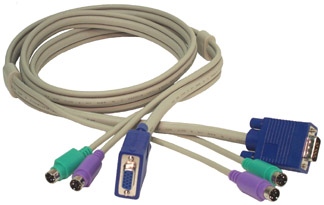

VIP-305-KVM-06 KVM Cable, 2X PS/2 male / male (purple & green) keyboard & mouse, and 1X HDD15 male female video, 6 feet long. Shipping weight is 2 lbs. $21.00 VIP-305-KVM-10 KVM Cable, 2X PS/2 male / male (purple & green) keyboard & mouse, and 1X HDD15 male female video, 10 feet long. Shipping weight is 2 lbs. $28.00 |
Use male / female extension cables to add six or more feet to the distance between the keyboard and/or mouse and the Vetra KVM product. Use the USB type A/B or the PS/2 male / male extension cables to connect the Vetra KVM product to the PC(s).
|
|
Used to connect the Vetra KVM product to the video port(s) of the PC(s), or to extend the distance between the video monitor(s) and the Vetra KVM product.
|
|
Use the female / female extension
cables whose model numbers begin with VIP-38X- for connecting
the transmitter and receiver units of Vetra KVM Extender products
(custom lenghts to 600 feet or more are available, contact
sales@vetra.com for pricing).
Model numbers beginning with VIP-303- are standard
molded and shielded DB9 extension cables.
|
|
|
VIP-38X-9FF-50 DB9 female/female 50' (1525 cm) extension
cable. Shipping weight is 2 lbs. $47.50
VIP-38X-9FF-75 DB9 female/female 75' (2286 cm) extension
cable. Shipping weight is 3 lbs. $62.50
VIP-38X-9FF-100 DB9 female/female 100' (3048 cm) extension
cable. Shipping weight is 4 lbs. $87.00
VIP-38X-9FF-125 DB9 female/female 125' (3810 cm) extension
cable. Shipping weight is 4 lbs. $109.00
VIP-38X-9FF-150 DB9 female/female 150' (4572 cm) extension
cable. Shipping weight is 5 lbs. $129.00
VIP-38X-9FF-175 DB9 female/female 175' (5334 cm) extension
cable. Shipping weight is 6 lbs. $147.00
VIP-38X-9FF-200 DB9 female/female 200' (6096 cm) extension
cable. Shipping weight is 7 lbs. $169.00
custom lenghts to 600
feet or more are available, contact sales@vetra.com
for pricing
All prices are subject to
change without notice.
Return
to top of page
Used for our products that are
not powered from the PC's keyboard or mouse port. Please see the
individual product sections for the correct power supply.
 |

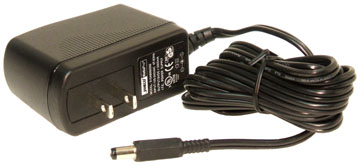

VIP-210 +5 VDC, 1.0A, regulated wall mount power supply with 2.5mm x 5.5mm PL06 plug. Input: 100 - 240V AC, 47 - 63Hz. UL, CE marked. Shipping weight is 1 lb. $25.00 |
|
VIP-211 +5 VDC, 2.5A, regulated wall mount power supply, 100 - 240 V AC 47-63 Hz input, with 2.5mm x 5.5 mm PL06 plug. UL, CE marked. Shipping weight is 1 lb. $30.00 |
Connect standard 5 pin DIN (AT)
connectors to 6 pin mini DIN (PS/2) connectors.
 |
VIP-301-5F6M 5 pin DIN (AT) female to 6 pin mini DIN (PS/2) male adapter. Shipping weight is 1 lb. $5.00 VIP-301-5M6F 5 pin DIN (AT) male to 6 pin mini DIN (PS/2) female adapter. Shipping weight is 1 lb. $5.00 |
 |
VIP-80X-RM19 19"W, 2U (3.5")H rack mount tray. Sturdy steel construction finished in scratch resistant black paint. Shipping weight is 8 lbs. $75.00 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
275 Marcus Blvd. Ste-J Hauppauge, NY 1178-2022 USA Toll Free 1-800-537-9296 Tel: 631-434-3185 Fax: 631-434-3516 e-mail: sales@vetra.com |
