 Realize the full potential of your video touch screen applications
VIP-884-V-TS Quad Workstation Touch Technology Video Splitter
 VIP-884-V-TS
Connect four Touch Screen Video Monitors to one PC

Quad workstation Touch Technology Video Splitter, the VIP-884-V-TS TouchMux

Description:

The VIP-884-V-TS "TouchMux"™ Touch Technology Video Splitter / Multiplexer allows four Touch Screen Monitor workstations to share access to one PC. It is compact in design, easy to install and operate, and is available in two standard configurations. At the heart of the VIP-884-V-TS is Vetra's advanced video and touch technology emulation, which provides video resolutions of up to 1600 by 1200 at 75Hz and simple one touch workstation selection for ease of operation. Any of the Touch Screen Workstations may be extended to a distance of up to 100 feet from the unit. The unique video architecture of the VIP-884-V-TS Touch Screen Video Splitter allows it to be easily configured to operate with PCs having dual-head (two monitors) video outputs, on a special order basis. It is compatible with all popular touch screen monitors including those from 3M and ELO and operates transparently with all IBM PCs, PC operating systems and applications.

Operation:

Only one workstation may access the PC at any given time. This prevents unwanted input from the other workstations. The active workstation is selected by simply touching the touch screen monitor. In workstation selection mode, the VIP-884-V-TS utilizes a 5 second time out feature that monitors all connected touch screen monitor workstations for touch data input. The first workstation to generate touch screen data, "seizes" the PC and becomes the "active station". It remains "active" until no further touch data is detected for a period of 5 seconds, at which time it relinquishes control of the PC and the whole process starts again. The video content of the connected touch screen monitors is not switched, regardless of which workstation is active, and is present on all monitors at all times.

The VIP-884-TS is powered by from an external power supply (VIP-210 see Accessories) which is supplied with the unit. For applications requiring rack mounting, an optional 2U height rack mount tray is available (see Accessories ).

All Vetra Touch Technology KVM Splitters are designed and manufactured in the USA for use around the world for enterprise mission-critical applications and are backed by a Limited 3 Year Warranty.

For more information on this product or our complete line of KVM solutions, please contact us at sales@vetra.com

Features:

  • Designed and manufactured in the USA for use around the world
  • Backed by a Limited 3 Year Warranty
  • Supports all popular Touch Technology Monitors, including 3M and ELO, at video resolutions up to 1600 by 1200 at 75Hz
  • Simple one-touch workstation selection
  • The TouchMux is completely transparent to all PC's, operating systems, and programs
  • Workstations can be extended up to 100 feet from the PC
  • Workstations can be locked via keyswitch for uninterrupted input, or security considerations
  • A 2U height rack mount tray is available for rack mount installation

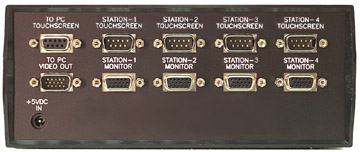

rear view of VIP-884-V-TS
REAR VIEW of VIP-884-V-TS



Models:

VIP-884-V-TS: Connects up to four touch screen monitor workstations to one PC. $399.00 tab_blue_button_add.gif

All prices subject to change without notice.
For International Representatives click here.

Vetra Systems welcomes Distributor and Reseller inquiries

Connections:

PC to TouchMux - A standard HDD15 Male-female video cable is used to connect to the video port of the PC. A standard DB9 Male-female cable is used to connect to the serial port (for touch screen data) of the PC. These cables are 6 feet in length and are provided with the unit.

Touch Screen Monitor to TouchMux - The captive cables that are part of, or provided with, the touch screen monitor are used to connect these devices to the TouchMux. Extension cables are also available for distances up to 100 feet (see Accessories ).

Powering the TouchMux - The TouchMux is powered with an external power supply (Vetra model VIP-210 see Accessories ) provided with the unit.

Specifications:

Dimensions for VIP-884-V-TS Touch Technology Video Splitter / Multiplexer are 3.38 in H x 8.08 in W x 6.32 in D (8.59 cm x 20.52 cm x 16.05 cm). The housing is molded of black GE Cycolac-T, a high impact ABS material, and are internally shielded with an acrylic nickel coating for RFI attenuation. Front and rear panels are fabricated from .062 in thick aluminium and finished with low gloss paint. FCC and CE marked. Shipping weight is 3 lbs.

 Environmental Operating Temp:
Storage Temp:
5 to 104 deg. F (-15 - 40 deg. C)
-4 to 122 deg. F (-20 - 50 deg. C)
 Supported Hardware Computer:
Touch Screen Monitors:
Maximum Resolution:
IBM PC/AT, PS/2 and 100% compatibles
3M, ELO and compatibles in VGA, SVGA modes
up to 1600 x 1200 at 75 Hz
TouchMux is a trademark of Vetra Systems Corporation Copyright © 1995 - 2003 by Vetra Systems Corporation All Rights Reserved
