Broadcast SVGA video content to 4 monitors from one PC Dual-Head video port

VIP-882-V2 2 port dual-head SVGA video monitor splitter
 VIP-882-V2

2 port dual-head SVGA video monitor splitter, the VIP-882-V2 ViewSplice

Multi-head and quad-head models available

Description:

The VIP-882-V2 "ViewSplice""Dual-Head Video Monitor Splitter allows simultaneous use of up to four SVGA monitors (2 per video source) from a single PC configured for dual-head video, or two independent SVGA video sources. It is compact in design and easy to install and operate, making it the ideal solution for dual-head video splitter applications requiring the broadcasting of two independent video streams to several different monitor locations. At the heart of the VIP-882-V2 is Vetra's advanced video circuitry, which supports all VGA and SVGA resolutions up to 1600 by 1200 at 75Hz out to a distance of 100 feet, for each connected monitor.

The VIP-882-V2 is also available as a Multi-Head or Quad-Head Video Splitter (3 or 4 video outputs on the PC).
The VIP-882-V2 2 Port Dual-Head Video Splitter is powered by from an external power supply (VIP-210 see Accessories) which is supplied with the unit. For applications requiring rack mounting, an optional 2U height rack mount tray is available (see Accessories ).

All Vetra Video Splitters are designed and manufactured in the USA for use around the world for enterprise mission-critical applications and are backed by a Limited 3 Year Warranty.

For more information on this product or our complete line of KVM solutions, please contact us at sales@vetra.com.


Features:

  • Designed and manufactured in the USA for use around the world
  • Backed by a Limited 3 Year Warranty
  • Supports 1600 by 1200 at 75Hz video resolution to all connected monitors
  • Standard models to support multi-head, and quad-head video configurations
  • Monitors can be located up to 100 feet from the Video Splitter

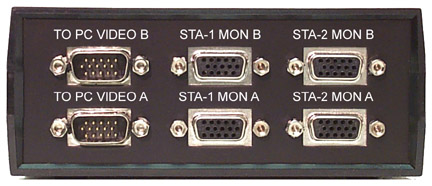

rear view of VIP-882-V2 2 Port Dual-Head Video Splitter
rear view of VIP-882-V2 2 Port Dual-Head Video Splitter



Models:

VIP-882-V2: Connect up to 4 video monitors (max 2 per source) to 2 video sources. $287.00 tab_blue_button_add.gif

VIP-882-V3: Connect up to 6 video monitors (max 3 per source) to 3 video sources. $383.00 tab_blue_button_add.gif

VIP-882-V4: Connect up to 8 video monitors (max 4 per source) to 4 video sources.$467.00 tab_blue_button_add.gif
All prices are subject to change without notice. For International representatives click here.


Connections:

Standard male-female video extension cables are used to connect the VIP-882-V2, V3 and V4 Video Splitters to the video ports of the PC. The monitors can connect directly to the ViewSplice via their captive cables or can be remotely located to a distance of 100 feet using male-female coax extension cables. Cables are not supplied with any of the units and can be purchased separately in lenghts from 6 to 100 feet (see Accessories ).
Specifications:

Dimensions for the VIP-882-V2 are 1.5 in H x 5.08 in W x 5.25 in D (3.81 cm x 12.90 cm x 13.34 cm). Dimensions for the VIP-882-V3 are 2.63 in H x 6.06 in W x 6.32 in D (6.68 cm x 15.39 cm x 16.05 cm). Dimensions for the VIP-882-V4 are 3.38 in H x 6.06 in W x 6.32 in D (8.59 cm x 15.39 cm x 16.05 cm). All housings are molded of black GE Cycolac-T, a high impact ABS material, and are internally shielded with an acrylic base nickel coating for RFI attenuation. Front and rear panels are fabricated from .062 in thick aluminium and finished with low gloss paint. All models are powered from the VIP-210 (see Accessories) wall mount power supply, supplied with the unit. FCC and CE marked. Shipping weight for -V2 model is 2 lbs. Shipping weight for -V3 model is 3 lbs. Shipping weight for -V4 model is 4 lbs.

 Environmental Operating Temp:
Storage Temp:
5 to 104 deg. F (-15 - 40 deg. C)
-4 to 122 deg. F (-20 - 50 deg. C)
 Supported Hardware Computer:
Video Monitors:
Maximum Resolution:
IBM PC/AT, PS/2 and 100% compatibles
VGA, SVGA
up to 1600 x 1200 at 75 Hz
ViewSplice is a trademark of Vetra Systems Corporation Copyright © 1995 - 2003 by Vetra Systems Corporation All Rights Reserved

For user instructions for all models click here.
For user instructions for all models in PDF format.

For a copy of Adobe's Acrobat® Reader".
