Vetra Systems Corporation
KVM solutions that work

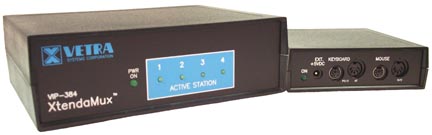

picture of VIP-384-KM-1 KVM Splitter / Multiplexer system
VIP-384-KMV-1 SYSTEM
Connect any combination of 4 local or remote workstations to one PC
Quad workstation KVM Splitter

VIP-384 XtendaMux

Dual Video models available

Description:

The VIP-384 "XtendaMux""KVM Splitter / Multiplexer system allows any combination of up to four local or remote workstations, each consisting of a keyboard, PS/2 mouse, and one or two monitors, to share access to one PC. Remote workstations may be located at a distance of up to 150 feet from the VIP-384 XtendaMux. The VIP-384 KVM Splitter / Multiplexer provides a flexible combination of KVM extending and KVM multiplexing technologies in a single, compact, easy to install and operate system, and is available in a variety of standard configurations. All VIP-384 KVM Splitter / Multiplexer systems utilize Vetra's advanced keyboard and mouse emulation technology, which provides error free boot up and mouse driver loading to the connected PC. It is compatible with all popular keyboards and mice including Microsoft IntelliMouse, and operates transparently with all PCs, PC operating systems and applications.

Operation:

Only one workstation may access the PC at any given time. This prevents unwanted input from the other workstations as might occur from accidental keystrokes or a bump to the mouse. Workstation selection has two modes. The default mode utilizes a 5 second time out feature that monitors all connected workstations for keyboard or mouse input. The first workstation to generate keyboard or mouse input "seizes" the PC and becomes the "active station". It remains "active" until no further keyboard or mouse input is detected for a period of 5 seconds, at which time it relinquishes control of the PC and the whole process starts again. The second mode provides a lock and release feature which allows the user of an "active station" to lock out (3 taps on the left Shift key) the other workstations, for uninterrupted input to the PC, and then release control (3 taps on the right Shift key) when finished so that all workstations are available once again to the PC.

When PC control passes from one workstation to another, the intelligence in the XtendaMux KVM Splitter / Multiplexer updates any changes to the keyboard status indicators, CAPS, SCROLL, and NUM Lock to the current "active station". The connected monitors are not switched, regardless of which workstation is active, and are on at all times.

A workstations keyboard and/or mouse may be disconnected and re-connected (hot-plugged), or exchanged at any time without having to power down the connected PC. This feature is useful if a connected device fails during a critical application. Local workstations connect directly to the VIP-384 XtendaMux KVM Splitter / Multiplexer which is powered by a wall mount power supply. For remote workstations, the keyboard and mouse are connected to a Transmitter unit (VIP-380-T supplied as part of system) and are powered by a wall mount power supply. All power supplies are supplies with the system.

The remote workstation's keyboard and mouse data is transmitted via serial link between the the Transmitter unit(s) (VIP-380-T) and the VIP-384 XtendaMux. Distance between the Transmitter unit(s) (VIP-380-T) and the VIP-384 XtendaMux KVM Splitter / Multiplexer can be almost any length, since the RS-232 connection between them can be tailored for the required distance, from simple cables to low loss cable, short haul modems, fiber, etc. For applications requiring rack mounting, a 2U height rack mount tray is available (see Accessories ).

All Vetra KVM Splitters and Multiplexers are designed and manufactured in the USA for use around the world for enterprise mission-critical applications and are backed by a Limited 3 Year Warranty.

For more information on this product or our complete line of KVM solutions, please contact us at sales@vetra.com


Features:

  • Designed and manufactured in the USA for use around the world
  • Backed by a Limited 3 Year Warranty
  • Allows PC access from any combination of up to four local or remote workstations
  • Hot Plug feature allows keyboards and mice to be swapped at any time!
  • Models available to support dual video available
  • Supports all popular keyboards and mice including Microsoft IntelliMouse
  • Supports 1600 by 1200 at 75Hz video resolution
  • The XtendaMux KVM Splitter is completely transparent to all PC's, operating systems, and programs
  • LED's and parameters are correctly updated each time a workstation becomes active
  • Lock and Release feature prevents unwanted keyboard or mouse input from other workstations
  • A 2U height rack mount tray is available for rack mount installation

picture of VIP-384-KMV-2 KVM Splitter / Multiplexer system

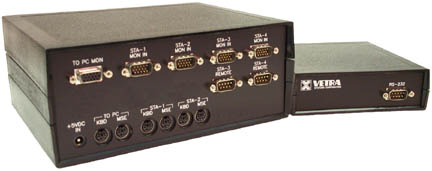

REAR VIEW of VIP-384-KMV-2 SYSTEM

Models:

VIP-384-KM-1: Three local keyboard and mouse sets and one remote set, to one PC.
$479.00

VIP-384-KM-2: Two local keyboard and mouse sets and two remote sets, to one PC.
$683.00

VIP-384-KM-3: One local keyboard and mouse set and three remote sets, to one PC.
$875.00 tab_blue_button_add.gif

VIP-384-KM-4: Four remote keyboard and mouse sets, to one PC.
$1079.00 tab_blue_button_add.gif

VIP-384-KMV-1: Three local workstations (1 keyboard, mouse & monitor) and one remote workstation to one PC.$623.00 tab_blue_button_add.gif

VIP-384-KMV-2: Two local workstations (1 keyboard, mouse & monitor) and two remote workstations to one PC.
$815.00

VIP-384-KMV-3: One local workstation (1 keyboard, mouse & monitor) and three remote workstations to one PC.$1019.00 tab_blue_button_add.gif

VIP-384-KMV-4: Four remote workstations to one PC.
$1199.00 tab_blue_button_add.gif

VIP-384-KMV2-1: Three local dual-video workstations (1 keyboard, mouse & 2 monitors) and one remote dual-video workstation to one PC.
$779.00

VIP-384-KMV2-2: Two local dual-video workstations (1 keyboard, mouse & 2 monitors) and two remote dual-video workstations to one PC.
$947.00

VIP-384-KMV2-3: One local dual-video workstation (1 keyboard, mouse & 2 monitors) and three remote dual-video workstations to one PC.
$1150.00 tab_blue_button_add.gif

VIP-384-KMV2-4: Four remote dual-video workstations (1 keyboard, mouse & 2 monitors) to one PC.
$1319.00 tab_blue_button_add.gif

All prices subject to change without notice.

For International Representatives click here.


Connections:

PC to XtendaMux - Standard male-male 6 pin mini-DIN extension cables are used to connect the VIP-384 XtendaMux KVM Splitter / Multiplexer to the keyboard and mouse ports of the PC, and standard HDD15 male-female video cables are used to connect to the video port(s) of the PC. These are provided as part of the system.

Transmitter units to XtendaMux - The VIP-380-T Transmitter unit(s) and the VIP-384 XtendaMux KVM Splitter / Multiplexer are connected by cables terminated in female DB-9 connectors. These may be user-supplied ( one to one wiring of pins 2, 3, 5, 7, and 8), or purchased from Vetra in standard lengths from 50 to 200 feet (see Accessories DB9 Extension Cables). Custom length cables are available from Vetra at an additional charge.

Keyboard, Mouse, and Monitor to XtendaMux and Transmitter unit(s) - For local workstation connection, the captive cables that are part of the keyboard, mouse and monitor are used to connect these devices directly to the VIP-384 XtendaMux KVM Splitter / Multiplexer. Standard 6 pin mini-DIN extension cables may be used for short extensions at the local site(s). For remote connection(s), the captive cables that are part of the keyboard and mouse are used to connect these devices to the VIP-380-T Transmitter unit(s). Remote monitor connections are made using HDD15 male-female mini coax extension cables connected between the remote monitor and the VIP-384 XtendaMux KVM Splitter / Multiplexer. You may use your own cables, or ours (see Accessories ).

Specifications:

Dimensions of the VIP-380-T Transmitter unit for all VIP-384 XtendaMux systems is 1.5H x 5.10W x 5.30L (38.1 cm x 12.95 cm 13.46 cm). Dimensions of the VIP-384 XtendaMux KVM Splitter / Multiplexer for models VIP-384-KM-1, -2, -3, and -4 are 2.63 in H x 8.08 in W x 6.32 in D (6.68 cm x 20.52 cm x 16.05 cm). Dimensions of the VIP-384 XtendaMux KVM Splitter / Multiplexer for models VIP-384-KMV-1, -2, -3, and -4 and VIP-384-KMV2-1, -2, -3, and -4 are 3.38 in H x 8.08 in W x 6.32 in D (8.59 cm x 20.52 cm x 16.05 cm). All housings are molded of black GE Cycolac-T, a high impact ABS material, and are internally shielded with an acrylic nickel coating for RFI attenuation. Front panels and rear panels are fabricated from .062 in thick aluminium and finished with low gloss paint. FCC and CE marked. Shipping weight for all -1 systems is 4 lbs. Shipping weight for all -2 and -3 systems is 5 lbs. Shipping weight for all -4 systems is 6 lbs.

 Environmental Operating Temp:
Storage Temp:
5 to 104 deg. F (-15 - 40 deg. C)
-4 to 122 deg. F (-20 - 50 deg. C)
 Supported Hardware Computer:
Video Monitors:
Maximum Resolution:
Peripherals:
IBM PC/AT, PS/2 and 100% compatibles
VGA, SVGA
up to 1600 x 1200 at 75 Hz
AT & PS/2 keyboards, PS/2 mice
 XtendaMux is a trademark of Vetra Systems Corporation Copyright © 1995-2001 by Vetra Systems Corporation All Rights Reserved

For user instructions click here.
For user instructions in PDF format.

For a copy of Adobe's Acrobat® Reader".
