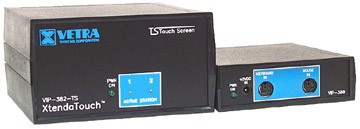

VIP-382-KMV-1-TS SYSTEM

Description: The VIP-382-TS "XtendaTouch"™ Touch Technology KVM Splitter / Multiplexer system allows two workstations, each consisting of a keyboard, PS/2 mouse, and one touch screen monitor, to share access to one PC. Either one or both of the workstations may be remotely located at a distance of up to 150 feet. The VIP-382-TS Touch Technology KVM Splitter provides a flexible combination of KVM extending and KVM multiplexing technologies in a single, compact, easy to install and operate system, and is available in a variety of standard configurations. At the heart of the VIP-382-TS is Vetra's advanced keyboard, mouse and touch technology emulation, which provides error free boot up and mouse driver loading to the connected PC, as well as simple one touch workstation selection for ease of operation. It is compatible with all popular keyboards and mice including Microsoft IntelliMouse, and touch screen monitors from 3M and ELO in video resolutions up to 1600 by 1200 at 75Hz, and operates transparently with all IBM compatible PCs, PC operating systems and applications. Operation: On both models, only one workstation may access the PC at any given time. This prevents unwanted input from the other workstation as might occur from accidental keystrokes, or a bump to the mouse. On the non-keyswitch model, workstation selection has two modes. The default mode utilizes a 5 second time out feature that monitors both workstations for keyboard, mouse or touch data input. The first workstation to generate keyboard, mouse or touch screen data, "seizes" the PC and becomes the "active station". It remains "active" until no further keyboard, mouse or touch data is detected for a period of 5 seconds, at which time it relinquishes control of the PC and the whole process starts again. The second mode provides a lock and release feature which allows the user of an "active station" to override the 5 second time out feature and manually lock out (3 taps on the left Shift key) the other workstation, and then release control (3 taps on the right Shift key) when finished so that both workstations are available once again to the PC. The keyswitch model utilizes a 2 position front panel keyswitch to select the active workstation. The keyswitch can be removed in either position for security purposes. When control of the PC passes from one workstation to the other, the intelligence in the XtendaTouch updates any changes to the keyboard status indicators, CAPS, SCROLL, and NUM Lock, to the current "active station". The video content of the connected touch screen monitors is not switched, regardless of which workstation is active, and is present on both monitors at all times. Any workstations keyboard and/or mouse may be disconnected and re-connected (hot-plugged), or exchanged at any time without having to power down the connected PC. This feature is useful if a connected device fails during a critical application. The VIP-382-TS can be powered by the connected PC's keyboard and mouse ports (depending on the PC) or from an optional external power supply (VIP-210 see Accessories). For applications requiring rack mounting, an optional 2U height rack mount tray is available (see Accessories ). All Vetra Touch Technology KVM Splitters are designed and manufactured in the USA for enterprise mission-critical applications and are backed by a Limited 3 Year Warranty. For more information on this product or our complete line of KVM solutions, please contact us at sales@vetra.com

Features: Designed and manufactured in the USA Backed by a Limited 3 Year Warranty Allows PC access from a local and remote workstation, or two remote workstations. Hot Plug feature allows keyboards and mice to be swapped at any time! Supports all popular Touch Technology Monitors, including 3M and ELO, at video resolutions up to 1600 by 1200 at 75Hz Supports all popular keyboards and mice including Microsoft IntelliMouse Simple one-touch workstation selection The XtendaTouch is completely transparent to all PC's, operating systems, and programs LED's and parameters are correctly updated each time a workstation becomes active Lock and Release features prevent unwanted keyboard or mouse input from other workstations A 2U height rack mount tray is available for rack mount installation

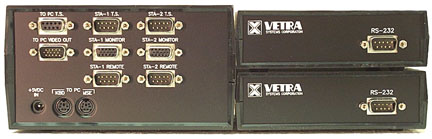

REAR VIEW of VIP-382-KMV-TS-2 SYSTEM

The -KS model utilizes a 2 position front panel keyswitch to select the active workstation. The keyswitch can be removed in either position for security purposes.

Models: VIP-382-KMV-1-TS: Connects one local workstation (keyboard, PS/2 mouse and touch screen monitor) and one remote workstation, to one PC. $429.00 VIP-382-KMV-1-TS-KS: Connects one local workstation (keyboard, PS/2 mouse and touch screen monitor) and one remote workstation, to one PC. Selection of active workstation via front panel keyswitch. $459.00 VIP-382-KMV-2-TS: Connects two remote workstations (keyboard, PS/2 mouse and touch screen monitor) to one PC. $589.00 VIP-382-KMV-2-TS-KS: Connects two remote workstations (keyboard, PS/2 mouse and touch screen monitor) to one PC. Selection of active workstation via front panel keyswitch.$619.00 All prices subject to change without notice. For International Representatives click here. Vetra Systems welcomes Distributor and Reseller inquiries

Connections: PC to XtendaTouch - Standard male-male 6 pin mini-DIN extension cables are used to connect the XtendaTouch to the keyboard and mouse ports of the PC. A standard HDD15 male-female video cable is used to connect to the video port of the PC. A standard DB9 male-female cable is used to connect to the serial port (for touch screen data) of the PC. These cables are 6 feet in length and are provided with the unit. Transmitter units to XtendaTouch - The VIP-380-T Transmitter unit(s) and the VIP-382-TS XtendaTouch are connected by cables terminated in female DB-9 connectors. These may be user-supplied ( one to one wiring of pins 2, 3, 5, 7, and 8), or purchased from Vetra in standard lengths from 50 to 200 feet (see Accessories DB9 Extension Cables). Custom length cables are available from Vetra at an additional charge. Keyboard, Mouse, and Monitor to XtendaTouch and Transmitter unit(s) - For local workstation connection, the captive cables that are part of, or supplied with, the keyboard, mouse and touch screen monitor are used to connect these devices directly to the VIP-382-TS XtendaTouch. Standard male-female extension cables may be used for short extensions at the local site. For remote workstation connection(s), the captive cables that are part of the keyboard and mouse are used to connect these devices to the VIP-380-T Transmitter unit(s). Remote touch screen monitor connections are made using HDD15 male-female mini-coax extension cables (for video content) and DB9 male-female cables (for touch data) connected between the remote monitor and the VIP-382-TS XtendaTouch. You may use your own cables, or purchase them direct from Vetra (see Accessories ). Powering the XtendaMux - All 382-TS XtendaTouch models are designed to be powered by the connected PCs. In some cases, depending on the make and model of the connected keyboards and mice, the PC's ports are unable to supply enough current to power all the devices. This can result in unreliable performance from the XtendaTouch. This can be corrected by powering the XtendaTouch with an external power supply (Vetra model VIP-210 see Accessories ). Specifications: Dimensions for the Transmitter unit VIP-380-T on all VIP-382-TS systems, are 1.5”H x 5.10”W x 5.30”L (38.1 cm x 12.95 cm 13.46 cm). Dimensions of the VIP-382-TS XtendaTouch are 3.38 in H x 6.06 in W x 6.32 in D (8.59 cm x 15.39 cm x 16.05 cm). All housings are molded of black GE Cycolac-T, a high impact ABS material, and are internally shielded with an acrylic nickel coating for RFI attenuation. Front panels and rear panels are fabricated from .062 in thick aluminium and finished with low gloss paint. FCC and CE marked. Shipping weight for -1-TS, and -1-TS-KS systems is 4 lbs. Shipping weight for -2-TS, and -2-TS-KS systems is 5 lbs.

Environmental	Operating Temp: Storage Temp:	5 to 104 deg. F (-15 - 40 deg. C)  -4 to 122 deg. F (-20 - 50 deg. C)
Supported Hardware	Computer:   Video Monitors: Maximum Resolution: Peripherals:	IBM PC/AT, PS/2 and 100% compatibles VGA, SVGA up to 1600 x 1200 at 75 Hz AT & PS/2 keyboards, PS/2 mice
XtendaTouch is a trademark of Vetra Systems Corporation Copyright © 1995-2001 by Vetra Systems Corporation All Rights Reserved

For user instructions click here.
For user instructions in PDF format.
For a copy of Adobe's Acrobat® Reader™.
