VIP-804-V 4 port Video Switch
 VIP-804-V



Switch one video monitor between multiple monitors





4 Port Video Monitor Switch


Description:

The VIP-804-V "MegaView"" Video Monitor Switch allows one monitor to be switched between up to four PCs. It is the ideal solution for single monitor switching applications where recovering valuable desk / rack space and reducing the clutter and expense of redundant monitors is desired. The VIP-804-V utilizes Vetra's unique electronic switching circuitry which supports crisp, clear video resolutions of up to 1600 by 1200 at 75Hz. Inexpensive video switches may use mechanical switches or relays to switch video signals, which over time and repeated usage can result in signal degradation or signal loss due to mechanical fatique or oxidation of contacts. The VIP-804-V Video Monitor Switch is a fully integrated electronic switch and can be counted on to provide years of dependable, uninterrupted service.

The VIP-804-V Video Monitor Switch comes in two standard configurations, is compact in design, easy to install and operate, and is ideally suited for desktop use, however, for applications requiring rack mounting, an optional 2U height rack mount tray is available (see Accessories ). The VIP-804-V Video Monitor Switch is also available as a Dual-Head Video Monitor Switch (2 video outputs per PC) and as a Multi-Head Video Monitor Switch (models for 3 or 4 video outputs per PC).

All Vetra Video Monitor Switches are designed and manufactured in the USA for use around the world for enterprise mission-critical applications and are backed by a Limited 3-year Warranty. For more information on this product or our complete line of KVM solutions, please contact us at sales@vetra.com

OPERATION:

The active PC is selected by either front panel switches or remotely via RS-232 serial commands.

The VIP-804-V-DE (Direct Entry model) has individual push button switches on the front panel for each selectable PC channel. Depressing a push button switches the connected monitor to the corresponding PC. The VIP-804-V has a single push button (NEXT PC) which provides manual sequential switching through all selectable PC channels. Each time the "NEXT PC" button is depressed it switches the connected monitor to the next PC channel in the cycle. Both models can be switched, via RS-232 serial commands, using the remote control connector (DB9 male) located on the back panel of the unit (see connections and specifications below).

In all cases and on both models, when the unit is powered, the PWR ON indicator on the front panel illuminates to indicate the unit is powered. When a PC channel is selected, a MONITOR STATUS LED on the front panel illuminates to indicate the currently selected PC.



Features:

  • Designed and manufactured in the USA for use around the world
  • Backed by a Limited 3 Year Warranty
  • Supports 1600 by 1200 at 75Hz video resolution
  • The MegaView is completely transparent to all PC's, operating systems, and programs
  • PC selection via front panel switches or RS-232 control
  • Uses inexpensive standard cables, eliminating the need for costly multi-port cables
  • A 2U height rack mount tray is available for rack mount installation

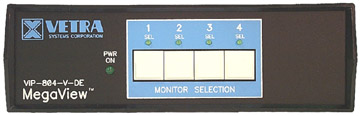

VIP-804-V-DE
VIP-804-v rear view

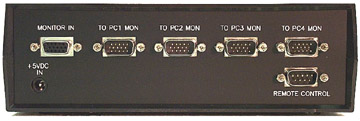

VIP-804-V rear view

Models:

4 Port Dual-Head and Multi-Head Video Monitor Switch models available.

VIP-804-V: 4 port Video Monitor Switch. Switches one monitor between four PCs. PC selection via RS-232 serial commands or sequentially via "NEXT PC" push-button. You will need four HDD15 video cables, such as our VIP-302-VGA-06 or VIP-302-CVGA-06, to connect PC's to the switch.
$275.00 tab_blue_button_add.gif

VIP-804-V-DE: 4 port Video Monitor Switch. Switches one monitor between four PCs. PC selection via RS-232 serial commands or front panel push-button switches. You will need four HDD15 video cables, such as our VIP-302-VGA-06 or VIP-302-CVGA-06, to connect PC's to the switch.
$310.00 tab_blue_button_add.gif

All prices are subject to change without notice.
For International Representatives click here.


Connections:

Standard male-female VGA extension cables are used to connect the MegaView to the video ports of the PC's. You may use your cables, or purchase them directly from Vetra Systems (see Accessories ). The captive cable that is part of, or provided with, the monitor is used to connect the monitor to the MegaView. The Remote Control (RS-232 control) connector is a DB9 male with serial data transmitted to pin-2 (pin-5 is gnd) @ 9600 baud. Data format is: one start bit, eight data bits (LSB first), one stop bit, no parity. Selection codes are: Hex 31 = PC#1, Hex 32 = PC#2, Hex 33 = PC#3, Hex 34 = PC#4.

Specifications:

Dimensions for the VIP-804-V and VIP-804-V-DE are 2.63 in H x 8.08 in W x 6.32 in D (6.68 cm x 20.52 cm x 16.05 cm). The housing is molded of black GE Cycolac-T, a high impact ABS material, and is internally shielded with an acrylic base nickel coating for RFI attenuation. Front and rear panels are fabricated from .062 in thick aluminium and finished with low gloss paint. Both models are powered via +5VDC external power supply (supplied with the unit). FCC and CE marked. Shipping weight is less than 3 lbs per unit.

Environmental
                     Operating Temp:            5 to 104 deg. F (-15 - 40 deg. C)
                     Storage Temp:              -4 to 122 deg. F (-20 - 50 deg. C)

Supported Hardware
                     Computer:                      IBM PC/AT, PS/2 and 100% compatibles
                     Video Monitors:              VGA, SVGA
                     Maximum Resolution:     up to 1600 x 1200 to 75 Hz

MegaView is a trademark of Vetra Systems Corporation, Copyright © 1995-2003 by Vetra Systems Corporation, All Rights Reserved



For user instructions click here.
For user instructions in PDF format.

For a copy of Adobe's Acrobat® Reader".
