 VIP-804-V2




The MegaView™ Series of Multi-Head Video Monitor Switches





allows you to switch
two, three or four Video Monitors per PC among four PCs


Description:

The VIP-804-V2, VIP-804-V3, and VIP-804-V4 "MegaView"™ Multi-Head Video Monitor Switches allow two, three or four video monitors to be switched among up to four PCs configured to support multiple video monitors. Note that you do not need to have four PCs connected to the video switch; any number up to four will work. These multi-head video switches are the ideal solution for multiple video monitor switching applications where recovering valuable desk / rack space and reducing the clutter and expense of redundant monitors is desired.
The VIP-804-V2, VIP-804-V3, and VIP-804-V4 Multi-Head Video Monitor Switches utilize Vetra's unique electronic switching circuitry which supports crisp, clear video resolutions of up to 1600 by 1200 at 75Hz for each connected monitor. Inexpensive video switches may use mechanical switches or relays to switch video signals, which over time and repeated usage can result in signal degradation or signal loss due to mechanical fatigue or oxidation of contacts. The VIP-804-V, VIP-804-V3, and VIP-804-V4 Multi-Head Video Monitor Switches are fully integrated electronic switches and can be counted on to provide years of dependable, uninterrupted service.

The VIP-804-V2, VIP-804-V3, and VIP-804-V4 Multi-Head Video Monitor Switches come in two standard configurations, are compact in design, easy to install and operate, and are ideally suited for desktop use. For applications requiring rack mounting, an optional 2U height rack mount tray is available (see Accessories ).

All Vetra Video Monitor Switches are designed and manufactured in the USA for use around the world for enterprise mission-critical applications and are backed by a Limited 3-year Warranty. For more information on this product or our complete line of KVM solutions, please contact us at sales@vetra.com

OPERATION:

The active PC is selected by either front panel switches or remotely via RS-232 serial commands.

The VIP-804-V2-DE, VIP-804-V3-DE, and VIP-804-V4-DE (Direct Entry models) have individual push button switches on the front panel for each selectable PC channel. Depressing a push button switches the connected monitor to the corresponding PC. The VIP-804-V2, VIP-804-V3, and VIP-804-V4 have a single push button (NEXT PC) which provides manual sequential switching through all selectable PC channels. Each time the "NEXT PC" button is depressed, it switches the connected monitor to the next PC channel in the cycle. All models can be switched, via RS-232 serial commands, using the remote control connector (DB9 male) located on the back panel of the unit (see Connections and Specifications below).

In all cases and on all models, when the unit is powered, the PWR ON indicator on the front panel illuminates to indicate the unit is powered. When a PC channel is selected, a MONITOR STATUS LED on the front panel illuminates to indicate the currently selected PC.



Features:

  • Designed and manufactured in the USA for use around the world
  • Backed by a Limited 3 Year Warranty
  • Supports 1600 by 1200 at 75Hz video resolution to each connected monitor
  • The MegaView is completely transparent to all PC's, operating systems, and programs
  • PC selection via front panel switches or RS-232 control
  • Uses inexpensive standard cables, eliminating the need for costly multi-port cables
  • A 2U height rack mount tray is available for rack mount installation




VIP-804-V2-DE

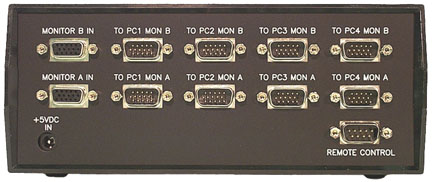

VIP-804-V2 rear panel


Models:

VIP-804-V2: 4 port Dual-Head Video Monitor Switch. Switches two monitors among four dual-head video configured PCs. PC selection via RS-232 serial commands or sequentially via "NEXT PC" push-button. You will need eight HDD15 video cables, such as our VIP-302-VGA-06 or VIP-302-CVGA-06, to connect PC's to the switch.
$383.00 tab_blue_button_add.gif

VIP-804-V2-DE: 4 port Dual-Head Video Monitor Switch. Switches two monitors among four dual-head video configured PCs. PC selection via RS-232 serial commands or front panel push-button switches. You will need eight HDD15 video cables, such as our VIP-302-VGA-06 or VIP-302-CVGA-06, to connect PC's to the switch.
$419.00 tab_blue_button_add.gif

VIP-804-V3: 4 port Tri-Head Video Monitor Switch. Switches three monitors among four tri-head configured PCs. PC selection via RS-232 serial commands or sequentially via "NEXT PC" push-button. You will need twelve HDD15 video cables, such as our VIP-302-VGA-06 or VIP-302-CVGA-06, to connect PC's to the switch.
$490.00

VIP-804-V3-DE: 4 port Tri-Head Video Monitor Switch. Switches three monitors among four tri-head configured PCs. PC selection via RS-232 serial commands or front panel push-button switches. You will need twelve HDD15 video cables, such as our VIP-302-VGA-06 or VIP-302-CVGA-06, to connect PC's to the switch.
$563.00

VIP-804-V4: 4 port Quad-Head Video Monitor Switch. Switches four monitors among four quad-head configured PCs. PC selection via RS-232 serial commands or sequentially via "NEXT PC" push-button. You will need sixteen HDD15 video cables, such as our VIP-302-VGA-06 or VIP-302-CVGA-06, to connect PC's to the switch.
$575.00 tab_blue_button_add.gif

VIP-804-V4-DE: 4 port Quad-Head Video Monitor Switch. Switches four monitors among four quad-head configured PCs. PC selection via RS-232 serial commands or front panel push-button switches. You will need sixteen HDD15 video cables, such as our VIP-302-VGA-06 or VIP-302-CVGA-06, to connect PC's to the switch.
$647.00 tab_blue_button_add.gif

All prices are subject to change without notice.
For International Representatives click here.


Connections:

Standard male-female VGA extension cables are used to connect the MegaView to the video ports of the PC's. You may use your cables, or purchase them directly from Vetra Systems (see Accessories ). The captive cable that is part of, or provided with, the monitor is used to connect the monitor to the MegaView. The Remote Control (RS-232 control) connector is a DB9 male with serial data transmitted to pin-2 (pin-5 is gnd) @ 9600 baud. Data format is: one start bit, eight data bits (LSB first), one stop bit, no parity. Selection codes are: Hex 31 = PC#1, Hex 32 = PC#2, Hex 33 = PC#3, Hex 34 = PC#4.

Specifications:

Dimensions for the VIP-804-V2, VIP-804-V2-DE, VIP-804-V3, and VIP-804-V3-DE are 3.38 in H x 8.08 in W x 6.32 in D (8.59 cm x 20.52 cm x 16.05 cm). Dimensions for the VIP-804-V4, VIP-804-V4-DE are 4.04 in (10.26 cm) H x 8.08 in W x 6.32 in D (6.68 cm x 20.52 cm x 16.05 cm). The housings are molded of black GE Cycolac-T, a high impact ABS material, and are internally shielded with an acrylic base nickel coating for RFI attenuation. Front and rear panels are fabricated from .062 in thick aluminium and finished with low gloss paint. All models are powered via +5VDC external power supply (supplied with the unit). FCC and CE marked. Shipping weight is less than 3 lbs per unit.

Environmental
                     Operating Temp:            5 to 104 deg. F (-15 - 40 deg. C)
                     Storage Temp:              -4 to 122 deg. F (-20 - 50 deg. C)

Supported Hardware
                     Computer:                      IBM PC/AT, PS/2 and 100% compatibles
                     Video Monitors:              VGA, SVGA
                     Maximum Resolution:     up to 1600 x 1200 to 75 Hz

MegaView is a trademark of Vetra Systems Corporation.
Copyright © 1995-2003, 2010 by Vetra Systems Corporation. All Rights Reserved.



For user instructions click here.
For user instructions in PDF format.

For a copy of Adobe's Acrobat® Reader".
