Harness the multiple monitor power of Windows 2000 and beyond



Description:

The VIP-802-KMV8 "MegaSwitch"" 2X Quad-Head KVM switch allows one keyboard, mouse and up to eight monitors to control two PCs or Servers, each configured with two quad-head, or four dual-head video cards. It is the ideal solution for large multiple monitor KVM switch applications requiring access to two computers, without the clutter and expense of additional keyboards, mice and monitors. The VIP-802-KMV8 supports all popular keyboards and mice, including Microsoft IntelliMouse", and video resolution up to 1600 by 1200 at 75Hz per monitor.

The unique architecture of the MegaSwitch provides a dedicated microprocessor for each PC. This feature makes it possible to "hot-plug" keyboards and mice, at any time, and power the connected PCs up and down, in any order. At the heart of the MegaSwitch is Vetra's advanced keyboard and mouse emulation technology which provides error free boot up and mouse driver loading for each connected PC, and allows the MegaSwitch to operate transparently with
all PCs, PC operating systems, and applications.

The VIP-802-KMV8 2X Quad-Head KVM switch comes in a sturdy, compact metal housing, and is easy to install and operate. It is ideally suited for desktop use, however, for applications requiring rack mounting, an optional 2U height rack mount tray is available (see Accessories ).

All Vetra Multi-Head KVM Switches were designed and manufactured in the USA for use around the world for enterprise mission-critical applications and are backed by a Limited 3-year Warranty.

For more information on this product or our complete line of KVM solutions, please contact us at sales@vetra.com

OPERATION:

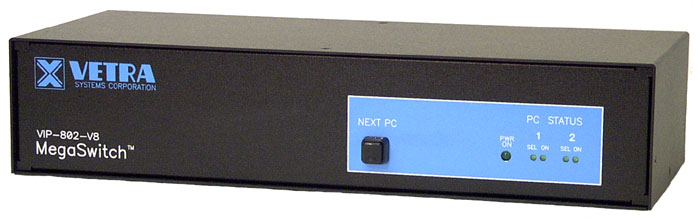

The VIP-802-KMV8 "MegaSwitch" can select the active PC via a keyboard "hot-key" sequence ( [scroll lock] + [1] for PC1, or [scroll lock] + [2] for PC2 ), or by the push button located on the front panel of the KVM Switch. When a PC channel is selected, an LED on the front panel illuminates to indicate the selected PC while additional front panel LED's indicate which PC channels are powered. Upon selection, the intelligence in the MegaSwitch correctly sets the keyboard's status indicators, CAPS, SCROLL, and NUM Lock, as these settings may be different for each PC. The keyboard and/or mouse may be disconnected and re-connected (hot-plugged), or exchanged at any time without having to power down the connected PC's. This feature is useful if a connected device fails during a critical application.


Features:

  • Designed and manufactured in the USA for use around the world
  • Backed by a Limited 3 Year Warranty
  • Hot Plug feature allows keyboard and mice to be swapped at any time!
  • Supports all popular keyboards and mice including Microsoft IntelliMouse"
  • Supports 1600 by 1200 at 75Hz video resolution per monitor
  • The MegaSwitch is completely transparent to all PC's, operating systems, and programs
  • Each PC boots error free, and PC's can be powered up or down in any sequence
  • Keyboard LED's and parameters are correctly set when switched from PC to PC
  • PC selection via the industry's easiest hot key selection sequence, no scrolling through complicated menus
  • Can use inexpensive standard cables, eliminating the need for costly multi-port cables
  • A 2U height rack mount tray is available for rack mount installation
Other Vetra Products
KVM Switches
Dual-Head KVM Switches
Touch Screen Products
Video Products
KVM Splitters
KVM Extenders


Keyboard Encoders
Keyboard & Mouse Port Terminators


Protocol Converters
Foot-operated Devices
Accessories



Models:

VIP-802-KMV8: 2 port, 2-times Quad-Head KVM Switch. Switch one keyboard, mouse and eight monitors between two multi-head PCs.
$1014.00 tab_blue_button_add.gif
All prices are subject to change without notice. For International Representatives click here.


Connections:

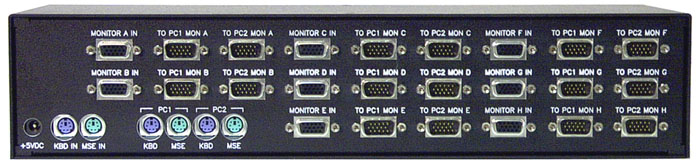

Standard male-male extension cables are used to connect the MegaSwitch to the keyboard and mouse ports of the PC's, and standard HDD15 Male-female video cables are used to connect to the video ports of PC's. Using standard cables eliminates the need to replace an entire multi-port cable if one connection is damaged or fails, thereby reducing the overall cost of maintainence. You may use your cables, or ours (see Accessories ). The captive cables that are part of the keyboard, mouse, and monitor are used to connect these devices to the MegaSwitch.
Specifications:

Dimensions for the VIP-802-KMV8 2X Quad-Head KVM Switch are 3.135 in H x 14.625 in W x 6.20 in D (7.96 cm x 37.15 cm x 15.75 cm). The housing is fabricated from .062 in thick aluminium, finished with low gloss, scratch resistant black paint and silk-screened with epoxy inks for lasting durability. The VIP-802-KMV8 2X Quad-Head KVM Switch is powered by an external power supply (VIP-210 supplied with unit) and is FCC and CE marked. Shipping weight is less than 4 lbs per unit.
Environmental
                     Operating Temp:            32 to 104 deg. F (0 - 40 deg. C)
                     Storage Temp:              -4 to 122 deg. F (-20 - 50 deg. C)

Supported Hardware
                     Computer:                      IBM PC/AT, PS/2 and 100% compatibles
                     Video Monitors:              VGA, SVGA
                     Maximum Resolution:     up to 1600 x 1200 to 75 Hz
                     Peripherals:                   AT and PS/2 keyboards, PS/2 mouse
